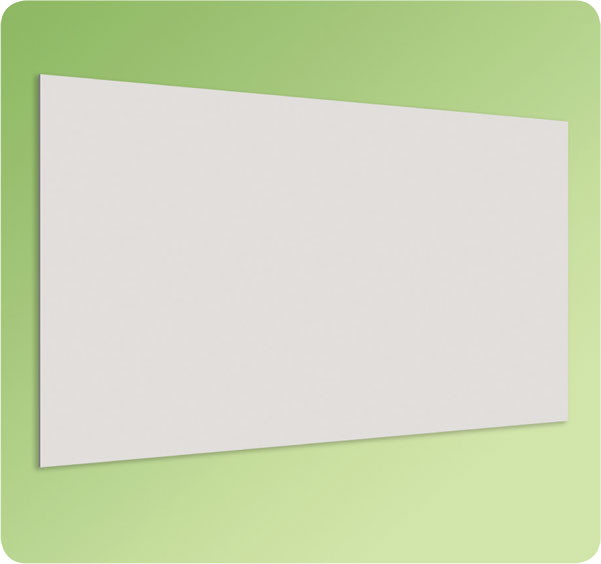

The maximum of sobriety with the least aesthetic impact

This frame screen was especially conceived to fit into more refined rooms, where the utmost sobriety with minimum aesthetic impact is required.

Its bearing structure in coated aluminium remains completely concealed behind the projection surface, allowing for a completely white screen and guaranteeing perfect flatness thanks to its sturdiness.

The fabric is fixed to the back of the structure by means of rods and elastic bands, which ensure optimal stretching. It can be fixed onto a wall thanks to specially provided brackets, which are invisible after installation.

It is available in all formats, and it can be produced – even custom-made – with a base width up to 400 cm.

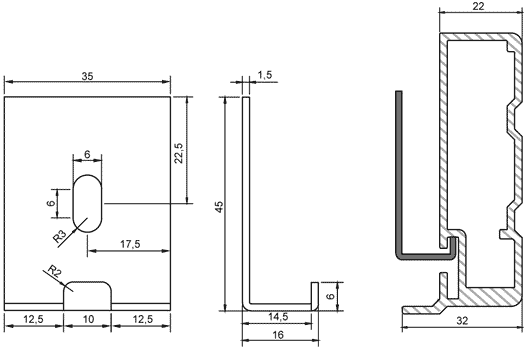

profile

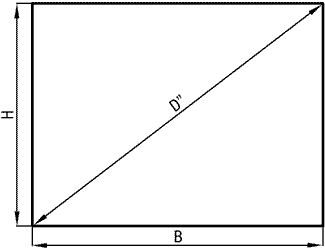

scheme

JOLLY White

Base B  H  D  C  F
160 160 x 120 79" 160 x 120 13
180 180 x 135 89" 180 x 135 15
200 200 x 150 98" 200 x 150 16
250 250 x 188 123" 250 x 188 19
300 300 x 225 148" 300 x 225 24
350 350 x 263 172" 350 x 263 28
400 400 x 300 197" 400 x 300 33
Base B  H  D  C  F
160 160 x 90 72" 160 x 90 12
180 180 x 101 81" 180 x 101 14
200 200 x 113 90" 200 x 113 16
250 250 x 141 113" 250 x 141 18
300 300 x 169 136" 300 x 169 22
350 350 x 197 158" 350 x 197 26
400 400 x 225 181" 400 x 225 31
Base B  H  D  C  F
160 160 x 100 74" 160 x 100 12
180 180 x 113 84" 180 x 113 14
200 200 x 125 93" 200 x 125 16
250 250 x 156 116" 250 x 156 18
300 300 x 188 139" 300 x 188 22
350 350 x 219 162" 350 x 219 26
400 400 x 250 186" 400 x 250 31
Base B  H  D  C  F
160 160 x 68 68" 160 x 68 11
180 180 x 77 77" 180 x 77 13
200 200 x 85 86" 200 x 85 15
250 250 x 106 107" 250 x 106 17
300 300 x 128 128" 300 x 128 20
350 350 x 149 150" 350 x 149 25
400 400 x 170 171" 400 x 170 29

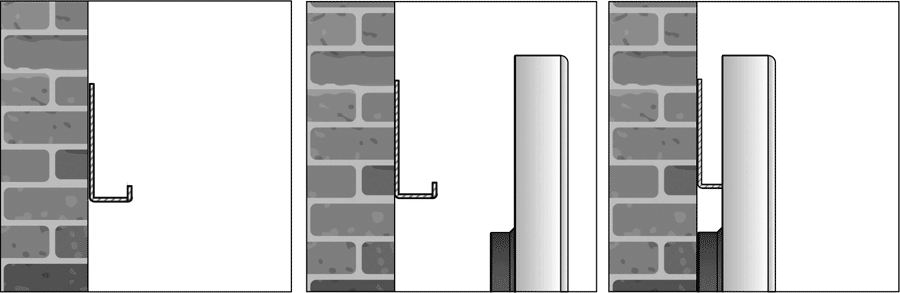

Mounting Brackets

brackets

Wall bracket
