jolly frame

Elegance and professionalism

The Jolly Frame screen stands out in the world of professional video projection because of the characteristic shape of its profile, especially conceived to allow for a total masking of the rear fastening system. It is equipped with an aluminium structural frame that can be divided into various parts, as well as particularly sturdy and resistant steel corner joints.

It is widely appreciated in the Rental world for its reliability and side coating strap that helps to preserve the fabric hanging system from accidental bumps.

Its frame, usually with a matt black finishing, can be covered with a soft black velvet flocking which, by completely absorbing the light, allows to eliminate any possible unwanted reflection.

It can be made with the projection surface applied to the frame by means of the conventional elastic tensioning system or with snaps.

Such distinctiveness makes it a precious tool in any situation and for any sector, from home cinema to rental.

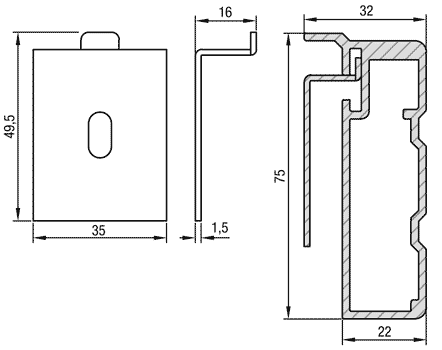

profile
scheme

JOLLY Frame

Base B  H  D  C  F
160 160 x 120 79" 175 x 135 13
180 180 x 135 89" 195 x 150 15
200 200 x 150 98" 215 x 165 16
250 250 x 188 123" 265 x 203 19
300 300 x 225 148" 315 x 240 24
350 350 x 263 172" 365 x 278 28
400 400 x 300 197" 415 x 315 33
450 450 x 338 221" 465 x 353 37
500 500 x 375 246" 515 x 390 40
600 600 x 450 295" 615 x 465 52
- - - - -
Base B  H  D  C  F
160 160 x 90 72" 175 x 105 12
180 180 x 101 81" 195 x 116 14
200 200 x 113 90" 215 x 128 16
250 250 x 141 113" 265 x 156 18
300 300 x 169 136" 315 x 184 22
350 350 x 197 158" 365 x 212 26
400 400 x 225 181" 415 x 240 31
450 450 x 253 203" 465 x 268 34
500 500 x 281 226" 515 x 296 37
600 600 x 338 271" 615 x 353 48
700 700 x 394 316" 715 x 409 60
Base B  H  D  C  F
160 160 x 100 74" 175 x 115 12
180 180 x 113 84" 195 x 128 14
200 200 x 125 93" 215 x 140 16
250 250 x 156 116" 265 x 171 18
300 300 x 188 139" 315 x 203 22
350 350 x 219 162" 365 x 234 26
400 400 x 250 186" 415 x 265 31
450 450 x 281 209" 465 x 296 34
500 500 x 313 232" 515 x 328 37
600 600 x 375 279" 615 x 390 48
700 700 x 438 325" 715 x 453 60
Base B  H  D  C  F
160 160 x 68 68" 175 x 83 11
180 180 x 77 77" 195 x 92 13
200 200 x 85 86" 215 x 100 15
250 250 x 106 107" 265 x 121 17
300 300 x 128 128" 315 x 143 20
350 350 x 149 150" 365 x 164 25
400 400 x 170 171" 415 x 185 29
450 450 x 191 193" 465 x 206 31
500 500 x 213 214" 515 x 228 35
600 600 x 255 257" 615 x 270 45
700 700 x 298 300" 715 x 313 55

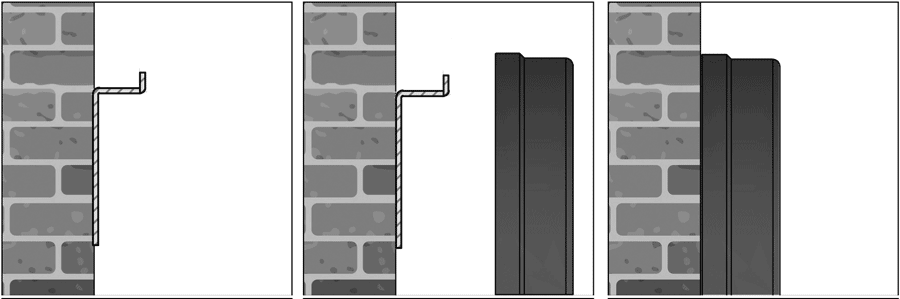

Mounting Brackets

brackets

Wall bracket
