congress

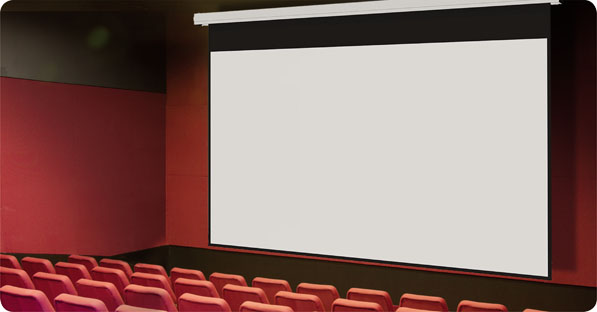

The electric screen for big spaces

This is the electric screen especially conceived for large size conference rooms. It is also used very often in small theatres or for showings in spacious areas where a roll-up screen is necessary.

It is produced in both the version with the case and the one without. It is available in white or black. Its mechanism is entirely in aluminium, it is equipped with an oversized motor and steel brackets that ensure perfect anchoring to a wall or ceiling, with fabric unrolling both from the front and the back of the roller.

Front projection, rear projection, or acoustically transparent perforated fabrics may be mounted onto it, and its base can be up to a 700 cm. wide.

In its Deluxe version, the Congress electric screen is enhanced by an elegant black perimeter edging, and it is available in all sizes, even customised ones.

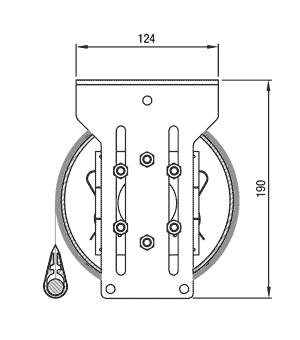

profile

CONGRESS without box

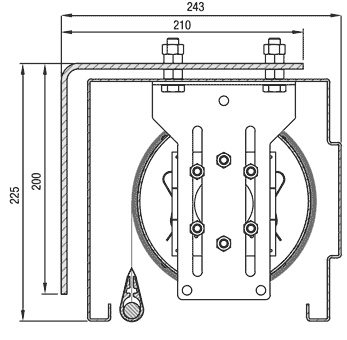

profile

CONGRESS with box

scheme

CONGRESS

Base Backdrop Envelope Weight (kg) Packing
B  H  D  F  C  A
500 500 x 375 246" 405 501 532 55 535 x 25 x 25
550 550 x 413 271" 443 551 582 66 585 x 25 x 25
600 600 x 450 295" 480 601 632 74 635 x 25 x 25
650 650 x 488 320" 518 651 682 81 685 x 25 x 25
700 700 x 525 344" 555 701 732 90 735 x 25 x 25
Base Backdrop Envelope Weight (kg) Packing
B  H  D  F  C  A
500 500 x 281 226" 311 501 532 55 535 x 25 x 25
550 550 x 309 248" 339 551 582 66 585 x 25 x 25
600 600 x 338 271" 368 601 632 74 635 x 25 x 25
650 650 x 366 294" 396 651 682 81 685 x 25 x 25
700 700 x 394 316" 424 701 732 90 735 x 25 x 25
Base Backdrop Envelope Weight (kg) Packing
B  H  D  F  C  A
500 500 x 313 232" 343 501 532 55 535 x 25 x 25
550 550 x 344 255" 374 551 582 66 585 x 25 x 25
600 600 x 375 279" 405 601 632 74 635 x 25 x 25
650 650 x 406 302" 436 651 682 81 685 x 25 x 25
700 700 x 438 325" 468 701 732 90 735 x 25 x 25
Base Backdrop Envelope Weight (kg) Packing
B  H  D  F  C  A
500 500 x 213 214" 243 501 532 55 535 x 25 x 25
550 550 x 234 235" 264 551 582 66 585 x 25 x 25
600 600 x 255 257" 285 601 632 74 635 x 25 x 25
650 650 x 277 278" 307 651 682 81 685 x 25 x 25
700 700 x 298 300" 328 701 732 90 735 x 25 x 25

CONGRESS Deluxe

Base 20 cm Drop Backdrop Envelope Weight (kg) Packing
E  B  H  D  F  C  A
500 490 x 368 241" 418 501 532 55 535 x 25 x 25
550 540 x 405 266" 455 551 582 66 585 x 25 x 25
600 590 x 443 290" 493 601 632 74 635 x 25 x 25
650 640 x 480 315" 530 651 682 81 685 x 25 x 25
700 690 x 518 340" 568 701 732 90 735 x 25 x 25
Base 50 cm Drop Backdrop Envelope Weight (kg) Packing
E  B  H  D  F  C  A
500 490 x 276 221" 356 501 532 55 535 x 25 x 25
550 540 x 304 244" 384 551 582 66 585 x 25 x 25
600 590 x 332 267" 412 601 632 74 635 x 25 x 25
650 640 x 360 289" 440 651 682 81 685 x 25 x 25
700 690 x 388 312" 468 701 732 90 735 x 25 x 25
Base 35 cm Drop Backdrop Envelope Weight (kg) Packing
E  B  H  D  F  C  A
500 490 x 306 227" 371 501 532 55 535 x 25 x 25
550 540 x 338 251" 403 551 582 66 585 x 25 x 25
600 590 x 369 274" 434 601 632 74 635 x 25 x 25
650 640 x 400 297" 465 651 682 81 685 x 25 x 25
700 690 x 431 320" 496 701 732 90 735 x 25 x 25
Base 50 cm Drop Backdrop Envelope Weight (kg) Packing
E  B  H  D  F  C  A
500 490 x 209 210" 289 501 532 55 535 x 25 x 25
550 540 x 230 231" 310 551 582 66 585 x 25 x 25
600 590 x 251 252" 331 601 632 74 635 x 25 x 25
650 640 x 272 274" 352 651 682 81 685 x 25 x 25
700 690 x 294 295" 374 701 732 90 735 x 25 x 25

Mounting Brackets

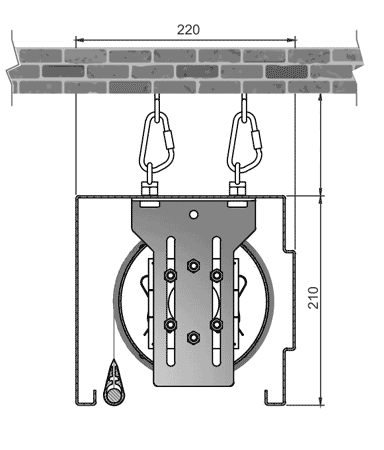

CONGRESS with box/case ceiling installation

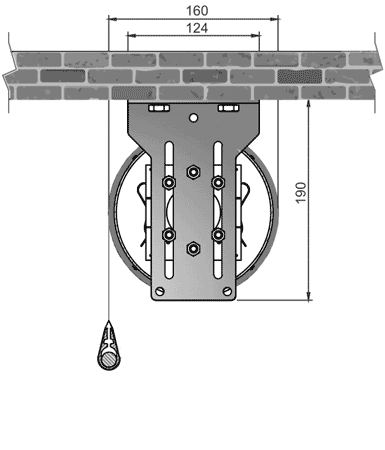

CONGRESS installation without ceiling box

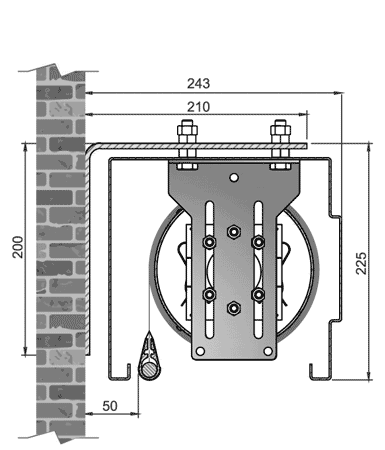

CONGRESS installation with wall box

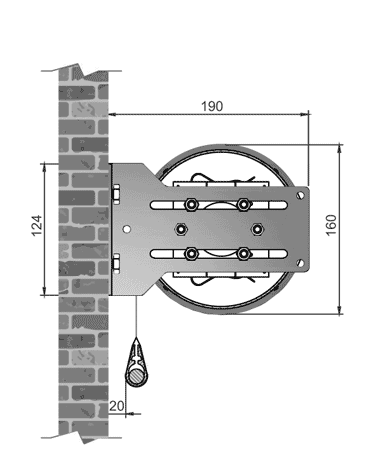

CONGRESS installation without wall box
