Beaded fabrics for small outfits

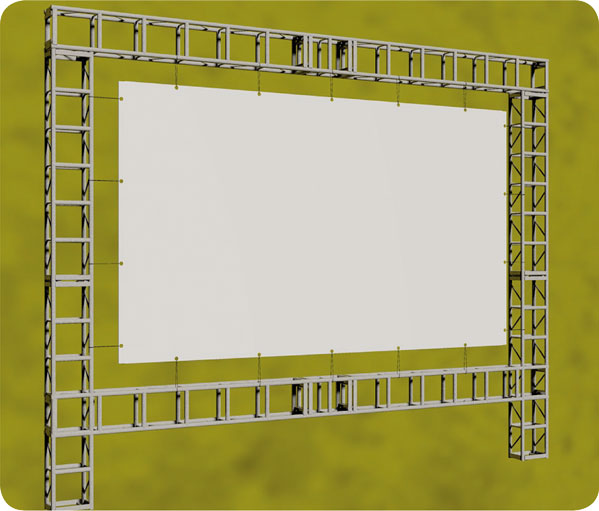

These projection screens are suitable for small set-ups or rentals. They can be used with joists or “American” beams.

On the four sides of the fabric, there are small heat-sealed pockets for steel rods to be inserted.

Stretching along the joist/beam is accomplished by means of elastic bands, inserted into eyelets on the perimeter pockets, which act directly on the steel rods. This anchoring system, besides being fast and easy, ensures perfect flatness of the projection surface.

schema

BASIC Fold

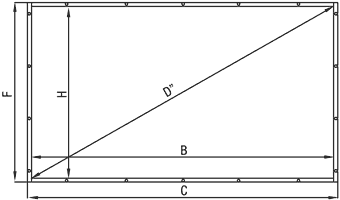

Base B  H  D  C  F
160 160 x 120 79" 166 x 126
180 180 x 135 89" 186 x 141
200 200 x 150 98" 206 x 156
250 250 x 188 123" 256 x 194
300 300 x 225 148" 306 x 231
350 350 x 263 172" 356 x 269
400 400 x 300 197" 406 x 306
450 450 x 338 221" 456 x 344
500 500 x 375 246" 506 x 381
600 600 x 450 295" 606 x 456
700 700 x 525 344" 706 x 531
Base B  H  D  C  F
160 160 x 90 72" 166 x 96
180 180 x 101 81" 186 x 107
200 200 x 113 90" 206 x 119
250 250 x 141 113" 256 x 147
300 300 x 169 136" 306 x 175
350 350 x 197 158" 356 x 203
400 400 x 225 181" 406 x 231
450 450 x 253 203" 456 x 259
500 500 x 281 226" 506 x 287
600 600 x 338 271" 606 x 344
700 700 x 394 316" 706 x 400
Base B  H  D  C  F
160 160 x 100 74" 166 x 106
180 180 x 113 84" 186 x 119
200 200 x 125 93" 206 x 131
250 250 x 156 116" 256 x 162
300 300 x 188 139" 306 x 194
350 350 x 219 162" 356 x 225
400 400 x 250 186" 406 x 256
450 450 x 281 209" 456 x 287
500 500 x 313 232" 506 x 319
600 600 x 375 279" 606 x 381
700 700 x 438 325" 706 x 444
Base B  H  D  C  F
160 160 x 68 68" 166 x 74
180 180 x 77 77" 186 x 83
200 200 x 85 86" 206 x 91
250 250 x 106 107" 256 x 112
300 300 x 128 128" 306 x 134
350 350 x 149 150" 356 x 155
400 400 x 170 171" 406 x 176
450 450 x 191 193" 456 x 197
500 500 x 213 214" 506 x 219
600 600 x 255 257" 606 x 261
700 700 x 298 300" 706 x 304
